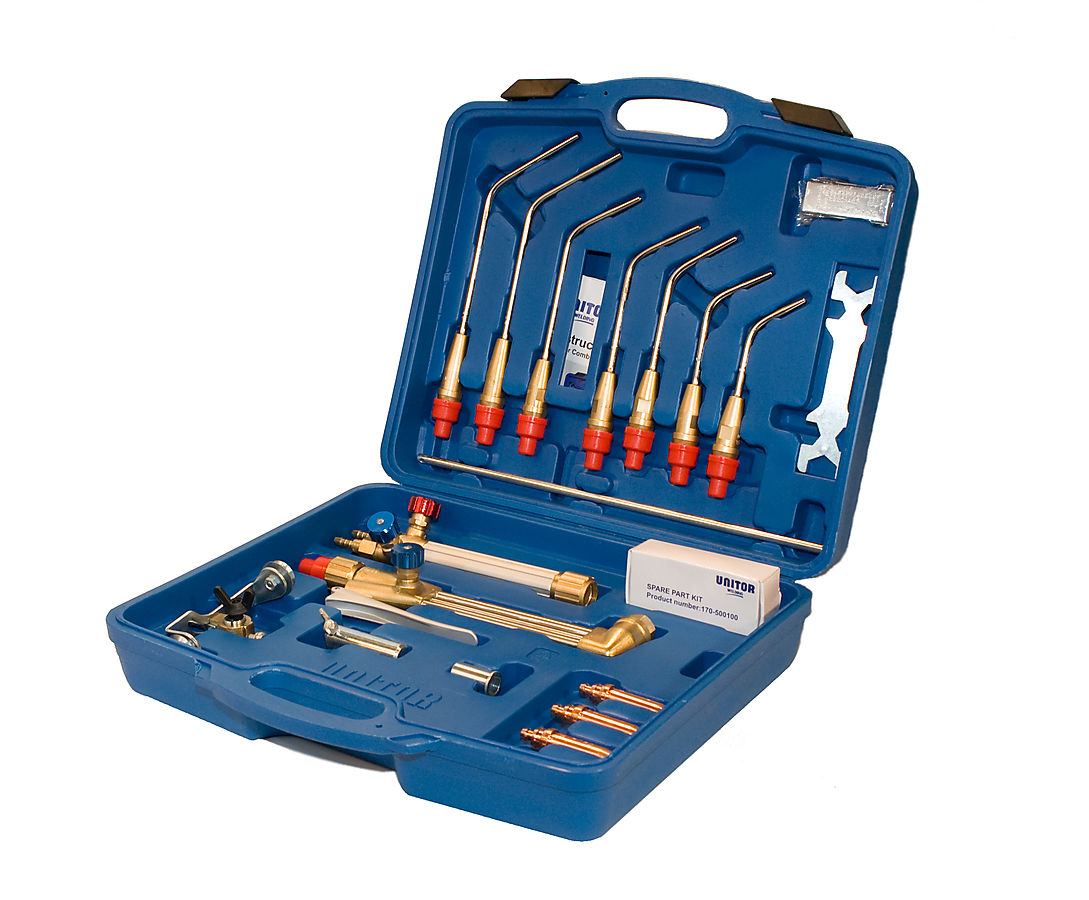

UCT-500 COMBINATION TORCH MASTER

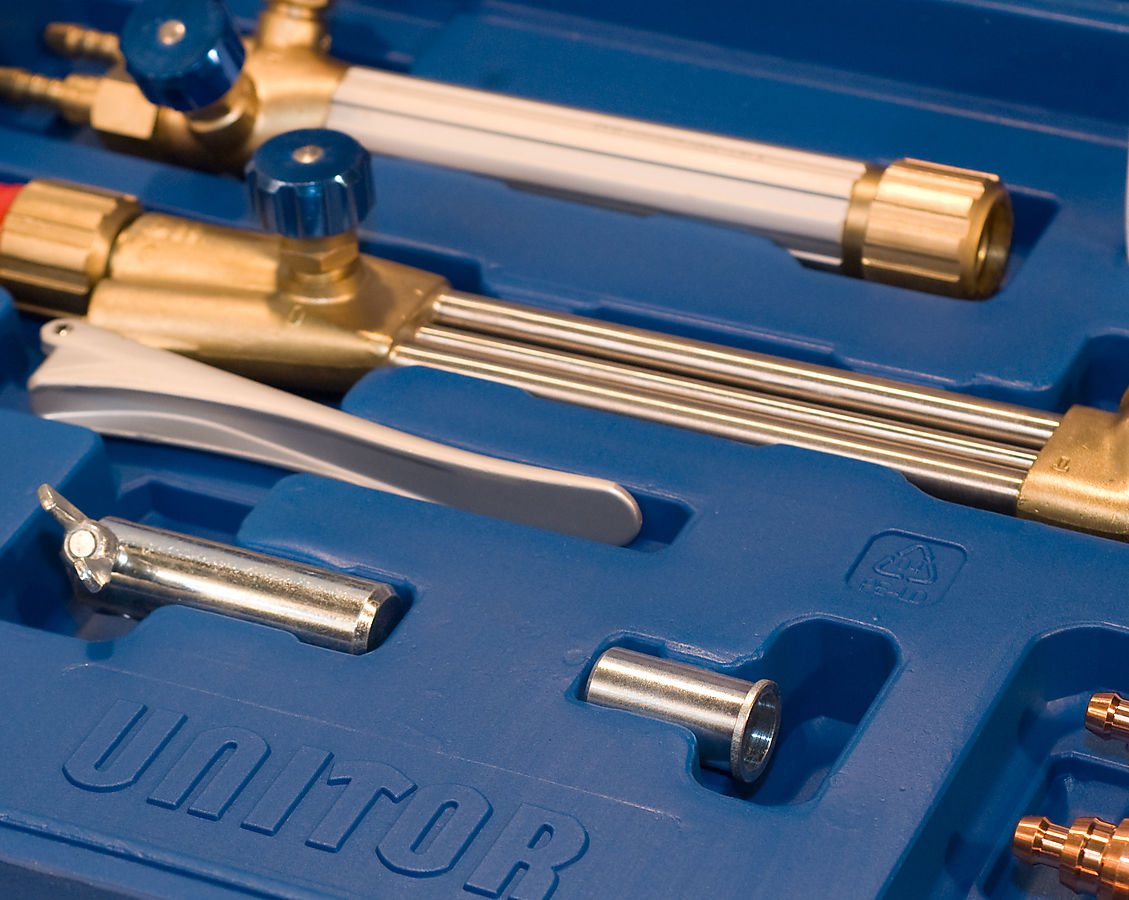

UCT-500 COMBINATION TORCH MASTER - Image 2

Welding Equipment

UCT-500 COMBINATION TORCH MASTER

The UCT-500 Master kit has been assembled to cover all ordinary Acetylene / Oxygen welding, brazing and cutting work that may occur on board.

Category: Welding Equipment Tags: portable welding, unitor, unitor batam, unitor chemicals, unitor indonesia, unitor jakarta, unitor wilhelmsen, welding, Wilhelmsen indonesia, wilhelmsen Jakarta

Description
Specifications

Versatile kit in heavy duty case for heating, brazing, welding and cutting application using acetylene and oxygen (AC-OX).

Features

The kit is assembled in a strong polyethylene case where each component clicks into it’s reserved compartment for good protection and complete overview
Wide range of application include Gas Welding, Heating, Gouging, Flame cleaning, Soldering, Cutting, Rivet burning, Flame straightening etc.

Benefits

Quick overview and easy management of Acetylene Oxygen gas welding and cutting kit
Equal pressure injector torch for safer handling
Gas welding for up to 14mm thick steel plates and max gas flow of 1250 nl/h
Gas cutting for up to 100mm thick steel
Individual components available for sale as spares

Specifications

Invent Hazard Material (IMO/EU) classification	NA

Dimensions/Weight

Dimensions L x W x H [mm]	380 x 125 x 435
Weight [kg]	6

Technical data

**Torch components**

UCT-500 shank, 6mm and 9mm hose sockets with non-return valves
Welding attachments: 40, 80, 230, 400, 650, 1000 and 1250 nl/h for welding up to 14mm thick steel plates
Cutting attachment 90 degr. with spare nozzle screw
Cutting nozzles for 3-10mm, 10-25mm, 25-50mm and 50-100mm steel thickness
Roller guide for 45-90 degr. cutting angles, with spare clamp sleeve
Circular motion bar complete with center and sleeve for 84-960mm diameter circles

**Torch maintenance equipment**

Spanner 15-, 17-, 18-, 19-, 23- and 24 mm for UCT-500
Cleaning needle set for UCT-500 welding attachments and cutting nozzles
Spare valve and complete O-ring set for UCT-500, including spare coupling nut for welding attachments
